Hollow bore encoder offered

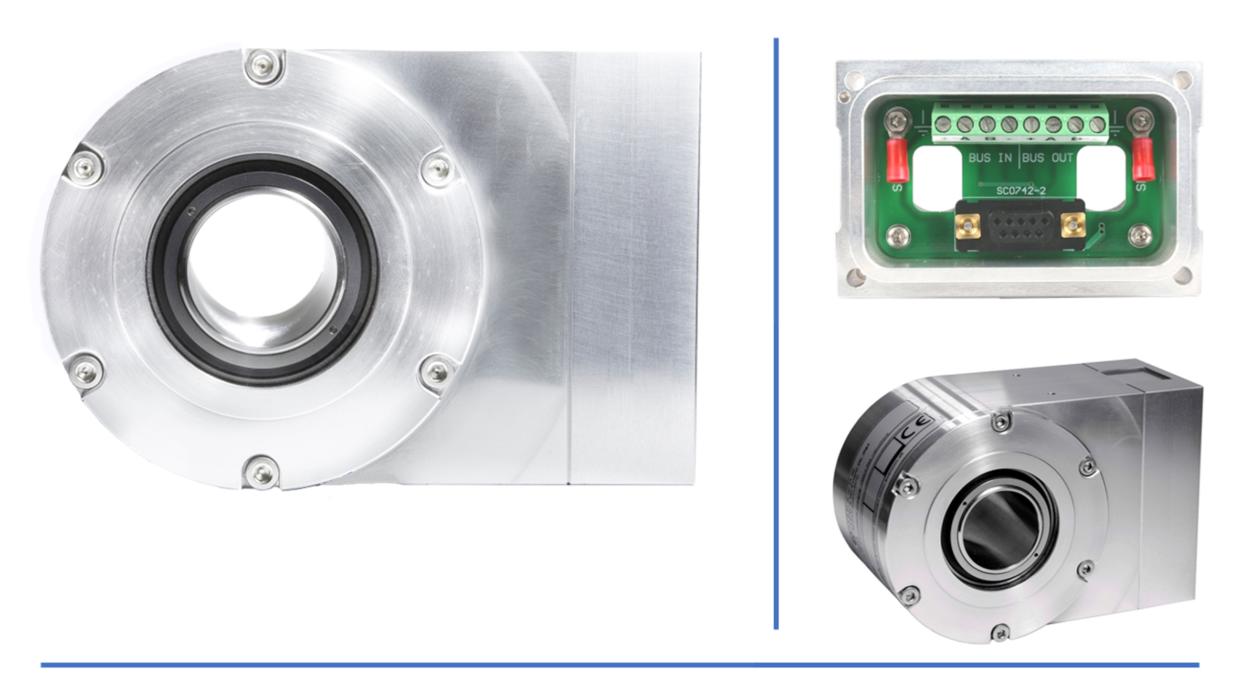

INSTROTECH is offering SCANCON’s Model: SCH88BEX, ATEX absolute encoder with Profibus Interface. It’s a strong, compact (89 mm footprint), cost-effective, through hollow bore encoder. Engineered for rugged conditions, it’s reliable for extra harsh environments, and is the encoder of choice for Zone 1 & 2 applications.

The SCH88BEX encoder has hybrid sensing technology and features optical technology for the single turn encoder, and magnetic for the multi-turn encoder. There are no gear wheels that can wear out. The unit can be mounted directly onto the shaft and the innovative, removable end-cap allows for ease of mounting cables. It can also be mounted directly into the application without the need for any barrier, isolator or special cable.

The SCH88BEX is certified for world wide application ATEX, IECEx and North American Class I Div. 1 certifications, and has the following features and advantages:

  • Hollow Shaft Encoder – ø 89 mm (ø 3.46 in.)
  • Through Hollow Bore: ø 25 mm to ø 30 mm (1.18 in.)
  • IP 66/67/68 (~ Nema 6) Environmental Protection
  • Aluminium (Chromital TCP surface treatment)
  • Material option Stainless Steel (AISI 316)

Applications for the Scancon SCH88BEX absolute encoder are found primarily in the industrial oil and gas fields, heavy industry, agriculture, marine and shipping, as well as for cranes. A Fibre Optic Ex-Proof version is available for ATEX Zone 1 applications, that eliminates signal degradation due to electrical noise issues, while providing the same superior qualities found in the standard model.

  • Contact INSTROTECH for more information on the Scancon SCH88BEX absolute encoder with Profibus 010 595 1831 or
