SKF has developed a new roller bearing for wind turbine gearboxes that offers bearing rating life at the forefront of the industry and enables reduction of downtime and maintenance.

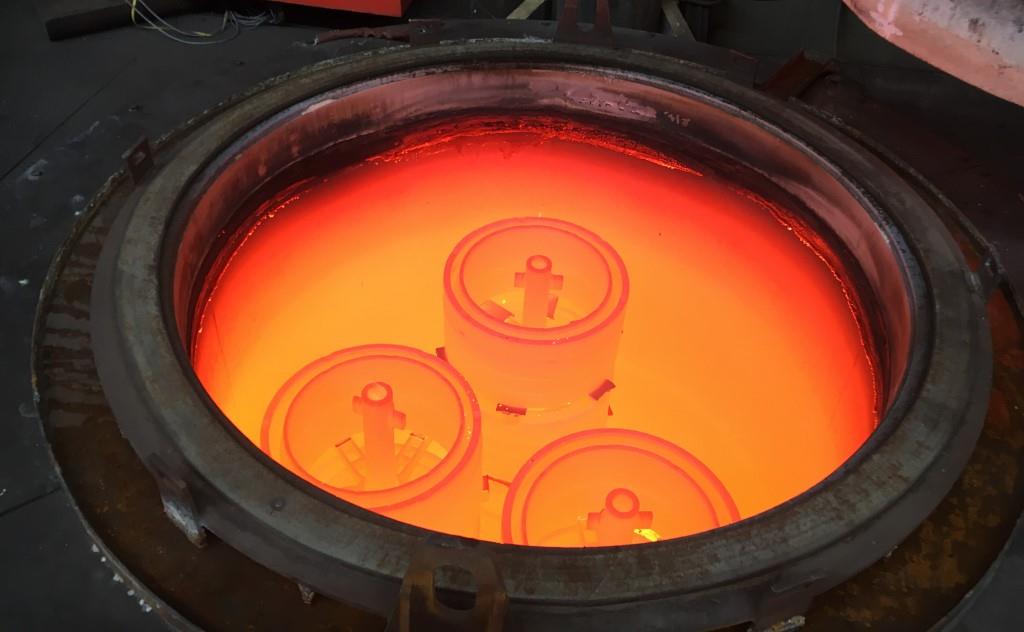

The SKF high durability gearbox bearing for wind relies on a tailored combination of steel and heat treatment process that is developed to raise fatigue resistance and robustness. A thermochemical heat treatment process improves its surface and subsurface properties.
“The heat treatment process enriches the surface layer of the bearing components and improves the material strength both at and below the surface, covering the high stressed material volume during bearing operation”, says David Vaes, manager of the Wind Gearbox Competence Centre at SKF. “Rolling bearing performance very much depends on material parameters such as microstructure, residual stress and hardness.”
This tailored steel and heat treatment process has several benefits: it increases bearing rating life and enables downsizing; increases the new bearings capacity to resists typical failure modes in gearboxes, such as premature failures related to White Etching Cracks (WECs), micropitting and wear.
Internal tests and calculations show up to a fivefold increase in bearing life compared to current industry standard. Moreover, an up to 10-times higher robustness against stress induced premature failures with WECs have been proven on in-house test rigs.
The improved performance of SKF high durability gearbox bearings mean the bearings can be downsized, helping to increase torque density of the gearbox. This is critical in the latest generation of multi-megawatt turbines.
In a typical planetary stage of a 6MW wind turbine gearbox, a size reduction of up to 25 %, of the planet wheel bearing and consequently of the planet gear as well, is achievable by using SKF high durability gearbox bearing while keeping the same rating life as the industry standard bearing.
Similar size reductions can be achieved on different positions in the gearbox. In a parallel gear stage, the bearing size reduction will also reduce the risk of slip-related damages.
Resistance to typical failure modes could help gearbox manufacturers, turbine owners and service providers to increase reliability and have less unplanned turbine standstill and repair cost.
The new features help to reduce the Levelized Cost of Energy (LCoE) for wind and supports the wind industry journey to become a cornerstone in the future energy mix.
